- ****Plan accordingly to receive items when you need them. ALL "Made to Order" items with lead times will effect the entire order fulfillment timeline. Custom items are NOT mass produced and require fabrication time. Orders will ONLY ship out in their entirety. If you need standard items shipped sooner, place multiple orders.****
Level 10 Innovations' Proprietary Guide Rod System for Dillon 1050 Presses. **PATENT PENDING**
-Designed to replace the toolhead spring and bushing system for use with auto drive systems that do not need spring assist. NOT for manually operated presses.
-Helps maintain toolhead alignment at the top of the press stroke until the OEM guide rods enter their holes in the press body.
-No modifications to the press required.
-Delrin(DuPont) guide rod slides snugly over existing spring guide, set screw is an added insurance precaution.
-Continuous guide rod alignment 100% of the time.
-Reduce or Eliminate Damaged brass caused by the natural toolhead twist

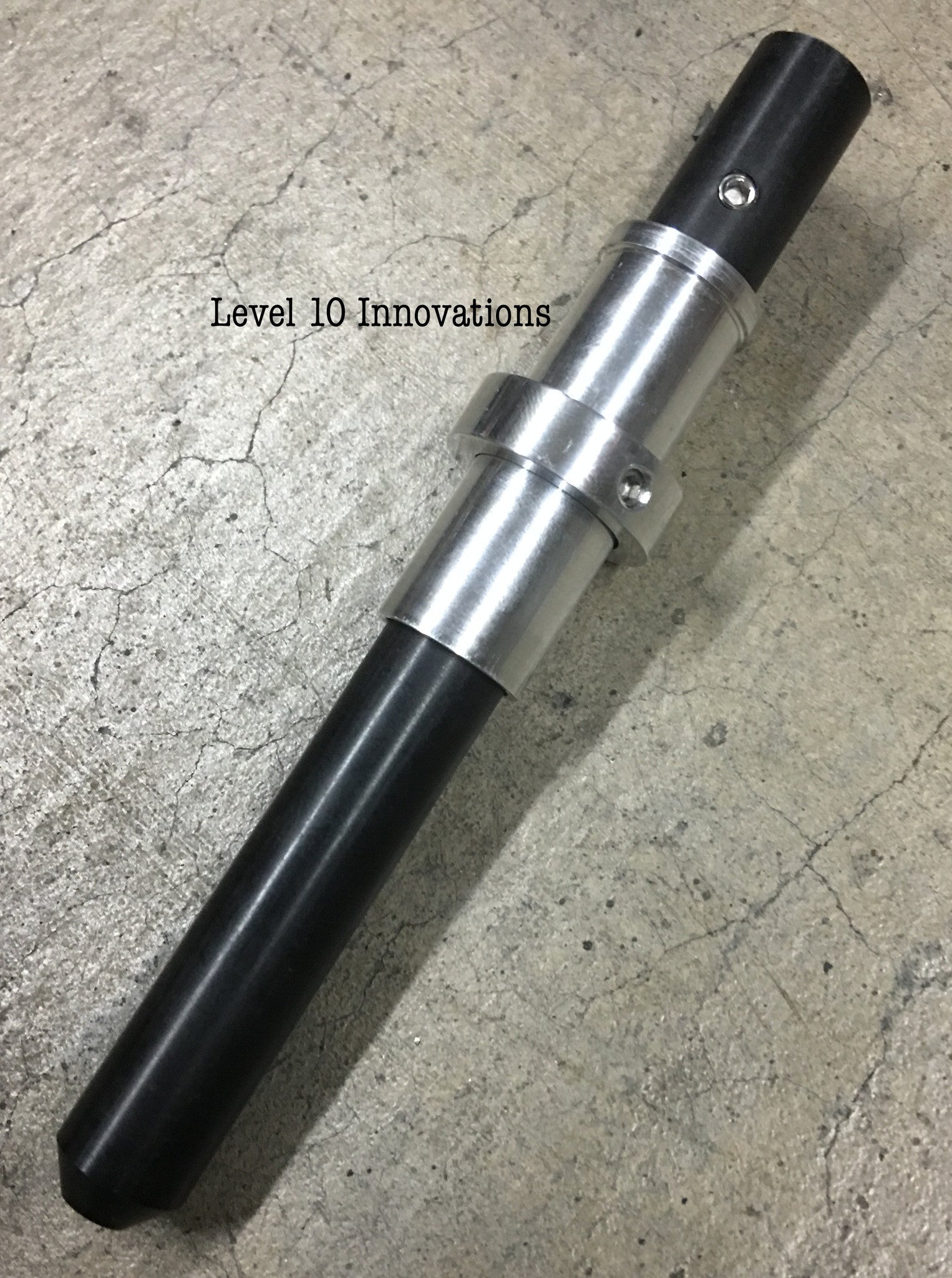

- Delrin Guide Rod (approximately 6" in Length, verify clearance)
- Aluminum Bushing
- 2ct Stainless Set Screws
- Aluminum Retaining Ring
**This will eliminate the spring assist needed on manual and most auto drive systems. Toolhead bolt must be properly torqued while the toolhead is in the bottom position. We are not responsible for misuse and/or improper install, damage to product or press.**
####REPLACEMENT GUIDE RODS MUST BE USED IN CONJUNCTION WITH LEVEL 10 INNOVATIONS' PROPRIETARY BUSHING, ORDER HISTORY MUST BE VERIFIED TO SHOW A COMPLETE KIT HAS BEEN PREVIOUSLY ORDERED FOR ORDER FULFILLMENT####
